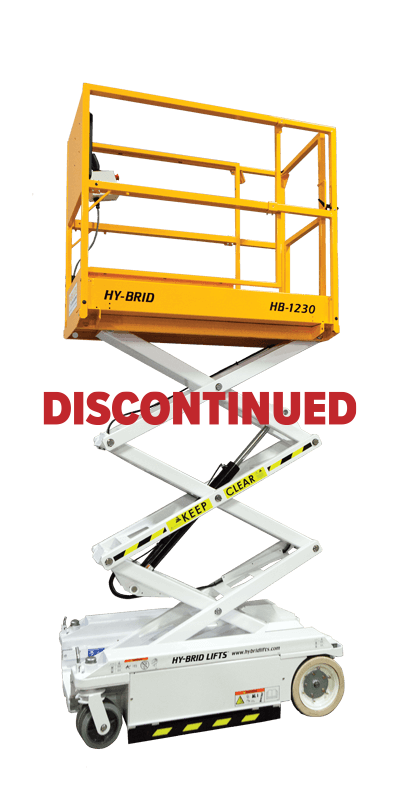

HB-1230

Zero-Turn Scissor Lift

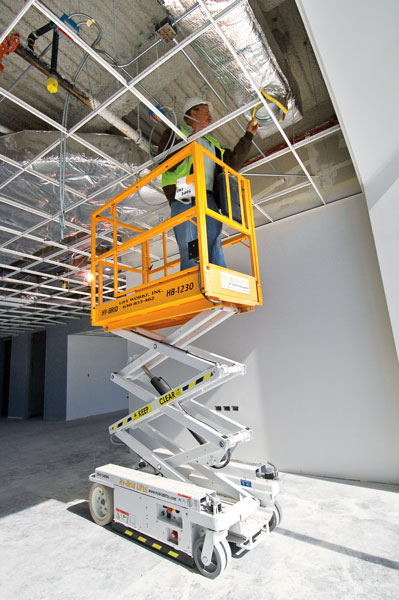

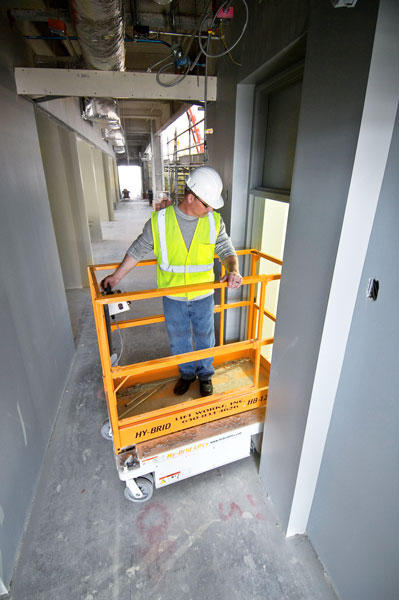

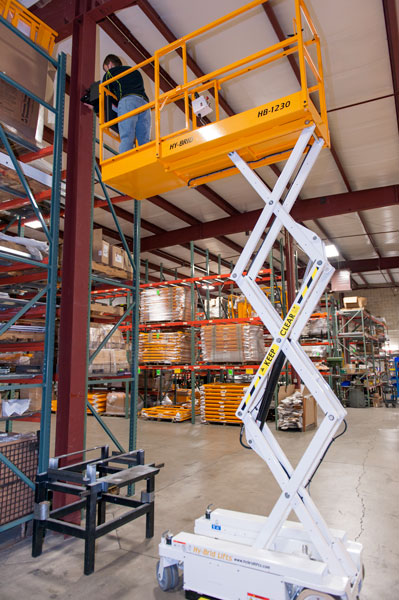

The Hy-Brid Lifts HB-1230 electric scissor lift is a more productive alternative to vertical mast lifts. Featuring a unique drive system and an 18 ft working height, this Zero-Turn Series lift easily maneuvers around confined spaces, making it ideal for contractors who do electrical, plumbing, drywall, or sprinkler systems.



View Current Model

  • HB-1230
  • Hy-Brid HB-1230
  • Hy-Brid HB-1230
  • Hy-Brid HB-1230
  • Hy-Brid HB-1230 Features Video
  • HB-1230 Safety
  • HB-1230 Scissor Lift Overview
  • HB-1230 Trailer Loading
  • Hy Brid Lifts HB 1230
  • Hy-Brid Lifts - HB-1230 So Easy!
  • Hy-Brid Lifts by Custom Equipment

Key Features

  • Working height up to 18 ft
  • Platform capacty up to 550 lbs
  • Zero-turn radius
  • Large work platform
  • Low floor load pressures
  • Slide out extension deck w/ slip-resistant surface
  • Non-marking wheels
  • 1-year parts & labor warranty
  • 5-year structural warranty

Options

  • Power-to-platform
Maximum Wheel Load137.7 psi949.6 kPa
Minimum Wheel Load102.7 psi707.8 kPa
Ground Clearance Lowered2.9 in7.3 cm
Ground Clearance Raised0.5 in1.3 cm
Platform Height Max (indoors)12 ft3.7 m
Platform Height Min20 in0.51 m
Working Height (indoors)18 ft5.5 m
Overall Length56 in1.42 m
Overall Width30 in0.76 m
Platform Extension30 in0.76 m
Platform Length53 in1.35 m
Platform Width25 in0.64 m
Stowed Height64 in1.63 m
Extension Capacity250 lbs113.4 kg
Inside Turning RadiusZeroZero
Lift Speed Up/Down18/16 sec18/16 sec
Platform Capacity550 lbs249.5 kg
Rated Occupancy2 Person(s)2 Person(s)
Weight1610 lbs730.3 kg
