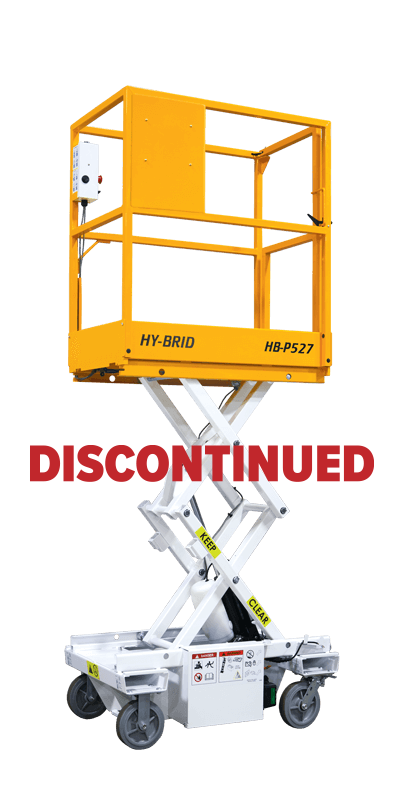

HB-P527

Push-Around Scissor Lift

The Hy-Brid Lifts HB-P527 manlift offers a small footprint and the height you need. This Push-Around Series scissor lift features numerous benefits that make it the safer alternative to ladders.

  • HB-P527
  • Hy-Brid Lifts by Custom Equipment

Key Features

  • Working height up to 11 ft
  • Platform capacity up to 500 lbs
  • Low floor load pressures
  • Full swing entry gate
  • 12V AGM battery
  • Non-marking wheels
  • 1-year parts & labor warranty
  • 5-year structural warranty

Options

  • Power-to-platform



Maximum Wheel Load215 psi1482.4 kPa
Minimum Wheel Load115 psi792.9 kPa
Ground Clearance2.5 in0.06 m
Platform Height Max (indoors)5.3 ft1.6 m
Platform Height Min20.3 in0.52 m
Working Height (indoors)11.3 ft3.4 m
Overall Length41 in1.04 m
Overall Width26.6 in0.67 m
Platform Length37 in0.94 m
Platform Width22 in0.56 m
Stowed Height63.6 in1.62 m
Lift Speed Up/Down9/12 sec9/12 sec
Platform Capacity500 lbs226.8 kg
Rated Occupancy1 Person1 Person
Weight575 lbs261 kg
