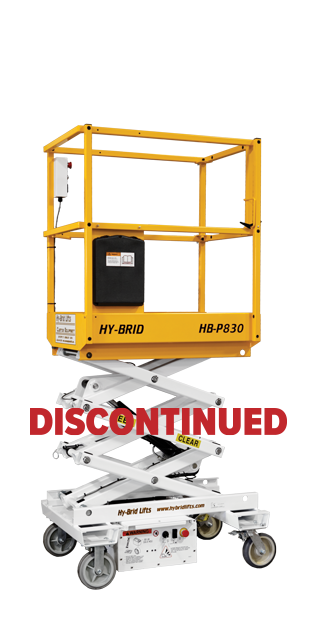

HB-P830

Push Around Scissor Lift

Hy-Brid Lifts push-around series have a small footprint and numerous features which make them the safer alternative to ladders.

  • HB-P830
  • Hy-Brid HB-P830
  • Hy-Brid Lifts by Custom Equipment

Key Features

  • Working height up to 14 ft
  • Weight allows machine to go on delicate flooring
  • Lifts 500 lbs
  • Non-marking tires
  • 1-year parts and labor warranty
  • 5-year structural warranty

Standard Features

  • Zero-Turning radius
  • Proportional controls
  • Full-Swing entrance door

Options

  • Power to the Platform
Specifications
Maximum Machine Load132 psf6.32 kPa
Maximum Wheel Load63.07 psi434.87 kPa
Minimum Machine Load81 psf3.88 kPa
Minimum Wheel Load38.68 psi226.71 kPa
Ground Clearance2.5 in6.35 cm
Platform Height Max8 ft2.44 m
Platform Height Min23.75 in0.60 m
Working Height14 ft4.27 m
Overall Length47 in1.19 m
Overall Width30 in0.76 m
Platform ExtensionN/AN/A
Platform Length44.5 in1.13 m
Platform Width25 in0.64 m
Stowed Height67.71 in1.72 m
Lift Speed Up/Down10/10 sec10/10 sec
Platform Capacity500 lb226.8 kg
Rated Occupancy1 person1 person
Weight793 lb360 kg
