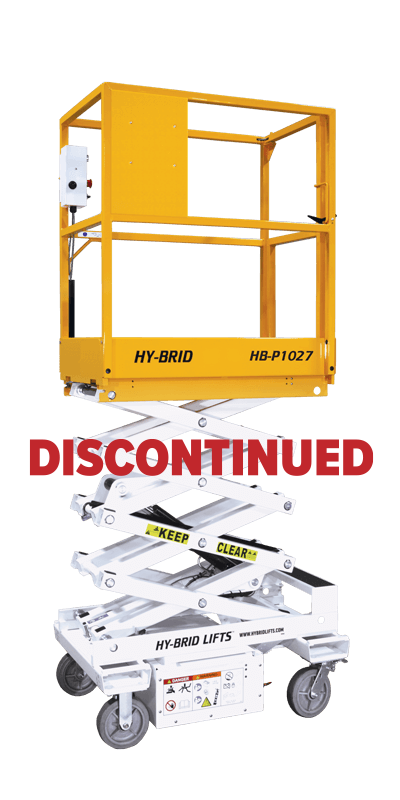

HB-P1027

Push-Around Scissor Lift

The Hy-Brid Lifts HB-P1027 scissor lift is compact and designed to maximize operator efficiency. As part of our Push-Around Series, this manual lift has numerous features that make it the safer alternative to scaffolding.



View Current Model

  • HB-P1027
  • Hy-Brid Lifts by Custom Equipment

Key Features

  • Working height up to 16 ft
  • Platform capacity up to 550 lbs
  • Low floor load pressures
  • Full swing entry gate
  • 12V AGM battery
  • Non-marking wheels
  • 1-year parts & labor warranty
  • 5-year structural warranty

Options

  • Power-to-platform
Maximum Wheel Load384.1 psi2717 kPa
Minimum Wheel Load250.3 psi1726 kPa
Ground Clearance1.6 in0.04 m
Platform Height Max (indoors)10 ft3 m
Platform Height Min27.8 in0.71 m
Working Height (indoors)16 ft4.8 m
Overall Length43 in1.09 m
Overall Width27.6 in0.70 m
Platform Length37 in0.94 m
Platform Width22 in0.56 m
Stowed Height71.1 in1.81 m
Lift Speed Up/Down16/14 sec16/14 sec
Platform Capacity550 lbs249.5 kg
Rated Occupancy1 Person1 Person
Weight870.5 lbs395 kg
